Governor Architecture

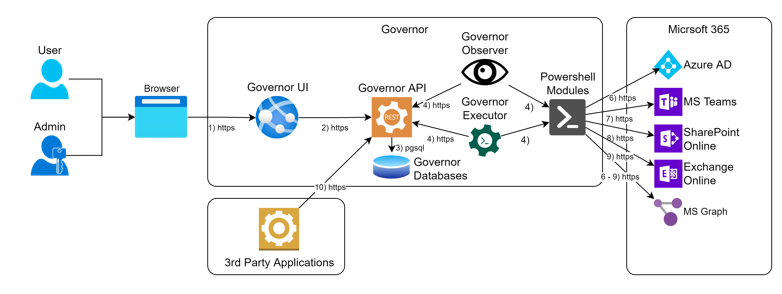

Cloud Governor is the product able to connect different target systems, consolidate and classify the incoming information. And then adhust modify target objects based on business needs or settings. As shown in the picture there are some basic components in Cloud Governor.
each of these components has its own "identity" and have different levels of permission.
Governor UI
Governor UI is the web portal used by End Users and Admins to check the target systems and apply company settings to them.
Governor API
Governor API is the "core". It is responsible to offer a standard REST API to the rest of the components and third party applications
As a concept, we could say that each component acts as a third party interacting with Governor API.
Governor Database
Database used to consolidate the cloud information and Governor Settings and policies.
Governor Observer
Component responsible for cloud observation.
Governor Executor
Component responsible of performing Cloud operations in the target system.
